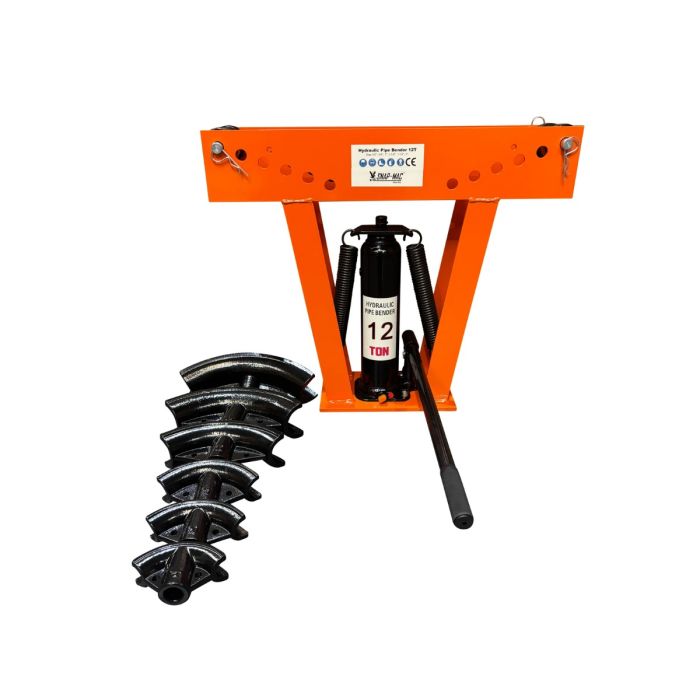

The US SNAP MAC 12 Ton Hydraulic Pipe Bender is a robust solution for bending heavy-gauge pipes with minimal effort. Built from high-quality, heavy-duty steel, this tool is engineered for long-lasting durability in demanding environments. The hydraulic ram delivers a powerful 12-ton force, allowing you to work with pipes up to 50mm in diameter.
The bender features an adjustable roller system, enabling you to modify the top rollers to achieve the specific degree of bend required. It is supplied with six quick-change precision-cast shoes (dies) that cover the most common pipe sizes, making it a versatile addition to any fabrication shop.
Key Features:
-
12-Ton Hydraulic Ram: Provides immense power for bending thick-walled pipes.
-
Precision Dies: Includes 6 cast iron shoes ranging from 15mm to 50mm.
-
Heavy-Duty Construction: Rugged steel frame ensures stability and a long service life.
-
Adjustable Rollers: Easy-to-adjust top rollers for customized bending angles up to 90°.
-
Versatile Use: Ideal for bending gas, water, sprinkler, and exhaust pipes.
Specifications:
-
Bending Capacity: 12 Tons
-
Bending Angle: Up to 90°
-
Die Sizes: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm (1/2" to 2")
-
Material: Heavy Gauge Steel
-
Dimensions: 61 x 16 x 51.5 cm
What’s Included:
-
1 x 12 Ton Hydraulic Pipe Bender Frame
-
1 x 12 Ton Hydraulic Jack
-
6 x Precision Cast Dies (15, 20, 25, 32, 40, 50 mm)
-
1 x Operating Handle
