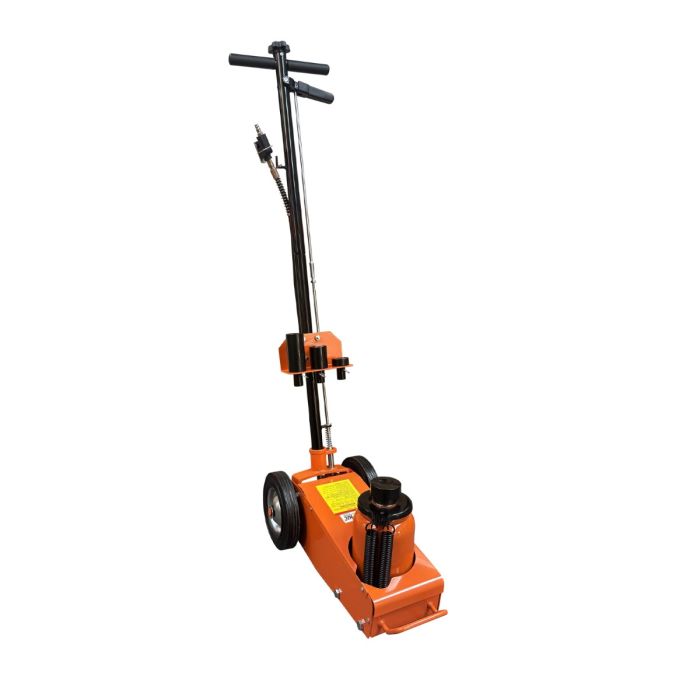

The US SNAP MAC 35 Tonne Professional Pneumatic Air Service Trolley Jack is a robust and reliable workshop‑grade lifting solution for heavy vehicles, industrial equipment, and commercial applications. Powered by compressed air, this jack delivers powerful lifting performance while offering excellent operator control and versatility.
Key Features:
-
Heavy Duty Lifting Capacity: Rated at 35 tonnes, making it suitable for lifting trucks, buses, agricultural machinery, and other heavy‑duty vehicles.
-
Low Entry Design: Enables placement under vehicles with limited ground clearance, with a minimum height of 27 cm (without saddle) and 29 cm (with saddle).
-
Extended Height Capability: Maximum lifting height of 65.5 cm (including the longest saddle extension).
-
Saddle Extensions Included: Comes with 4 saddle/extensions (2 cm, 2.5 cm, 6 cm, and 10 cm) providing added versatility for different lifting points.
-
Adjustable Handle Positions: Handle locks in three positions (0°, 45°, and 90°) including a horizontal position for maximum access.
-
Rapid Return Mechanism: 4 heavy‑duty return springs for faster ram retraction, increasing efficiency during repeated lifting tasks.
-
Rotary Release Valve: Positioned at the end of the handle for controlled and smooth lowering.
-
Air Operating Pressure: Designed for use with air compressors delivering 120–180 psi for optimal performance.
Specifications:
-
Load Capacity: 35 Tonne
-
Minimum Height: 27 cm (without saddle), 29 cm (with saddle)
-
Maximum Height: 65.5 cm (with longest saddle)
-
Handle Length: 117 cm
-
Air Pressure Requirement: 120–180 psi
-
Handle Lock Positions: 0°, 45°, 90°
What’s Included:
-
Pneumatic Air Service Trolley Jack
-
4 Saddle/Extension Adapters (2 cm, 2.5 cm, 6 cm, 10 cm)
-
Long Handle with 3 Lock Positions
-
Rotary Release Valve
Typical Use Cases:
-
Commercial garage operations
-
Heavy vehicle maintenance
-
Fleet service depots
-
Agricultural and industrial workshops
