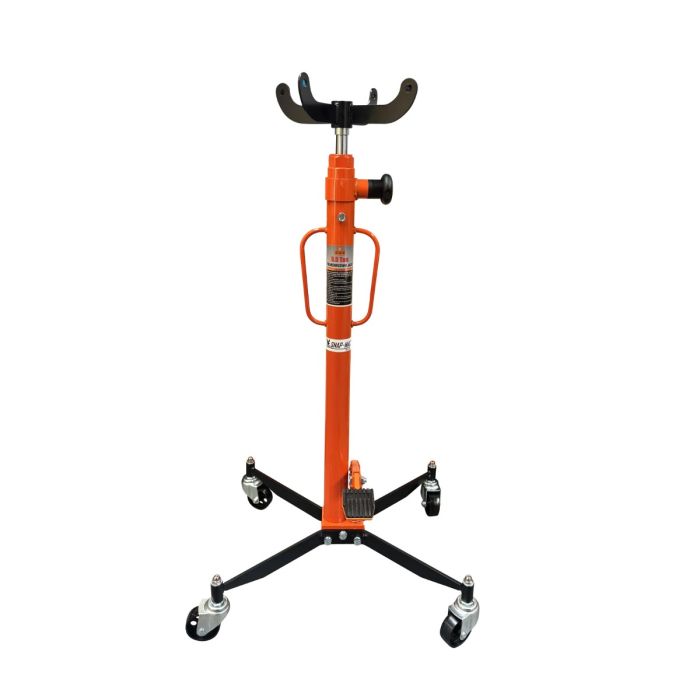

The US SNAP MAC US8401 Vertical Transmission Jack is an essential piece of equipment for any professional garage or serious automotive enthusiast. Specifically engineered to support heavy components while working under a vehicle lift, this jack offers a substantial 500kg lifting capacity. The telescopic two-stage hydraulic system provides a generous lifting range, reaching a maximum height of 1900mm (74 inches).
Its versatile design extends beyond just gearboxes; it is an ideal support tool for removing and installing fuel tanks, exhaust systems, rear axles, subframes, and steering racks. The jack features a wide, stable base with four heavy-duty swivel casters, ensuring smooth mobility around the workshop and stability when under load. The spring-loaded dead man's release valve ensures a controlled lowering of the load for maximum safety.
Key Features:
-
High Lift Range: Provides a maximum lift height of 1900mm, perfect for use with high-set vehicle lifts.
-
Hands-Free Operation: Features a hydraulic foot pump for effortless lifting, keeping hands free to guide the transmission.
-
Mobile & Stable: Built on a wide four-leg base with heavy-duty swivel wheels for easy manoeuvrability.
-
Precision Lowering: The manual release valve allows for high-precision, controlled descent of heavy components.
-
Universal Compatibility: Can be adapted for use with various automotive components, from transmissions to fuel tanks.
Technical Specifications:
-
Lifting Capacity: 0.5 Tonne (500kg)
-
Maximum Lift Height: 1900mm (74")
-
Minimum Height: 1100mm (43")
-
Hydraulic System: Vertical telescopic
-
Base Dimensions: 560mm x 570mm
-
Wheels: 4 x Swivel Casters
What’s Included:
-
1 x 0.5 Tonne Vertical Hydraulic Transmission Jack
-
1 x 4-Leg Wheeled Base Assembly
-
1 x Saddle Attachment
-
1 x User Manual
